Name: Petroleum / Diesel Tanker
Brand: HH FABTECH

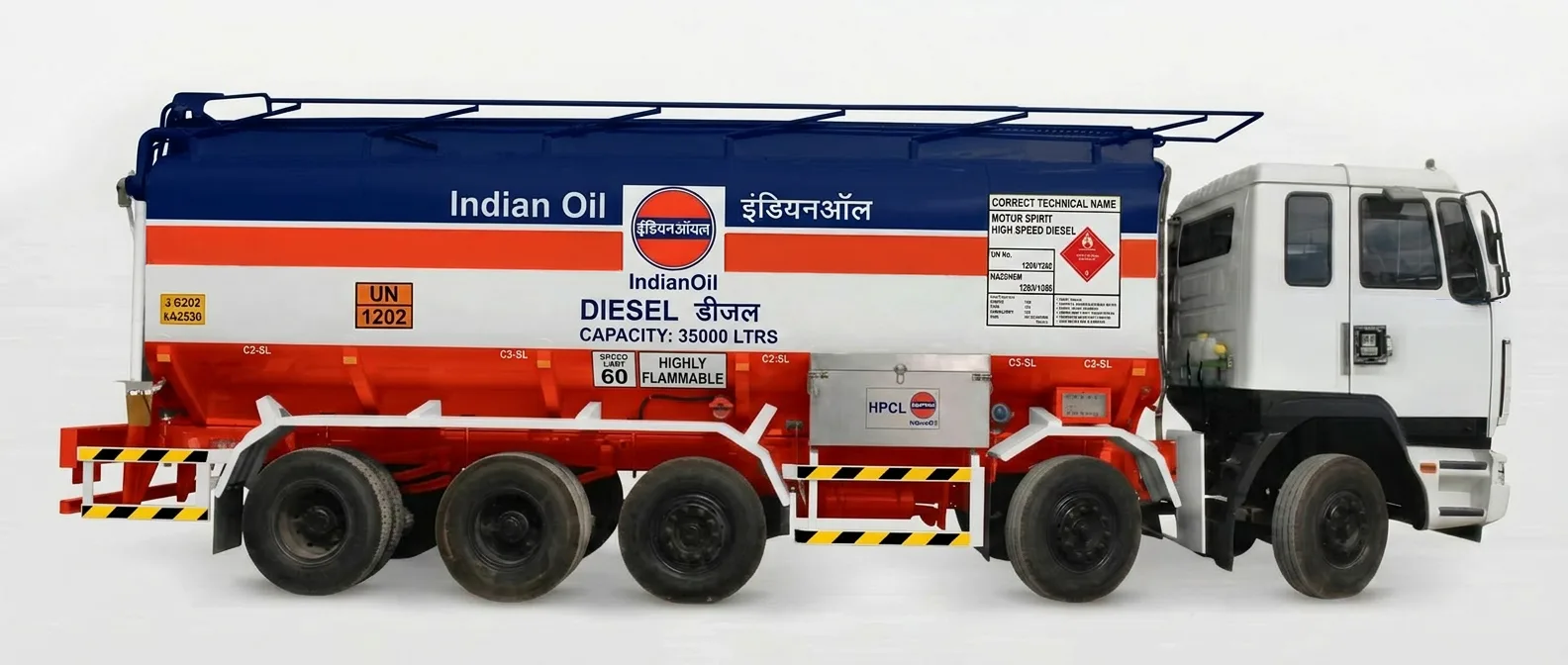

Petroleum / Diesel Tanker

HH FABTECH manufactures premium petroleum tankers designed for transportation of petrol, diesel and other petroleum products. Every tanker is engineered for maximum safety, durability and compliance with industry standards.

Available Branding

Request Quotation

TECHNICAL DETAILS

Available Configurations

Vehicle GVW	Tank Capacity	Compartment Configuration
16 GVW	12 KL	\| 4 KL \| 4 KL \| 4 KL OR \| 3 KL \| 3 KL \| 3 KL \| 3 KL \|
25 GVW	18 KL 20 KL	\| 4 KL \| 4 KL \| 5 KL \| 5 KL \| OR \| 5 KL \| 5 KL \| 5 KL \| 5 KL \|
31 GVW	24 KL	\| 4 KL \| 5 KL \| 5 KL \| 5 KL \| 5 KL \|
37 GVW	28 KL 29 KL	\| 7 KL \| 7 KL \| 7 KL \| 7 KL \| OR \| 6 KL \| 6 KL \| 6 KL \| 6 KL \| 5 KL \|
40 GVW	30 KL (MS)	\| 6 KL \| 6 KL \| 6 KL \| 6 KL \| 6 KL \|
49 GVW	35 KL (MS) 40 KL (AL)	\| 7 KL \| 7 KL \| 7 KL \| 7 KL \| 7 KL \| OR \| 7 KL \| 7 KL \| 7 KL \| 7 KL \| 5 KL \| 7 KL \|

TECHNICAL SPECIFICATIONS

General Specifications

Comparison between Top Loading and Bottom Loading Petroleum Tankers

Specification	Top Loading Tank	Bottom Loading Tank
Nozzles	18" Manhole in each compartment with 4" Fill Pipe 1" Dip Pipe P-V Valve Feasible Vent	20" Clamped Manhole in each compartment with Vapour Recovery Line P-V Valve Level Sensor
Operating Pressure	Atmospheric	Atmospheric
Valves & Discharge	3" Delivery Line with: Emergency Valve (Mechanical Lever) Gun Metal Valve Three Piece Ball Valve Front Delivery Header	4" Delivery Line with: Pneumatic Emergency Valve API Adopter Dust Cap at Discharge Point
Other Accessories	Fire Extinguishers Valve Box Mud Guards SUPD Catwalk with Hand Rail & Ladder	Gravity Coupler Vapour Adopter Control Panel Box Lockable Valve Box Fire Extinguishers Mud Guards SUPD Catwalk with Hand Rail & Ladder
Testing	Hydro Test at 0.35 kg/cm² in each compartment.	Hydro Test at 0.35 kg/cm² in each compartment.
Surface Preparation	3-D Pre Treatment with Zinc Phosphate coating followed by PU Paint. Shade as per customer requirement.	3-D Pre Treatment with Zinc Phosphate coating followed by PU Paint. Shade as per customer requirement.

APPROVED COMPONENT SUPPLIERS

PESO Approved Accessories

Why choose HH FABTECH?

🛢️

Petroleum Industry Approved

Manufactured according to petroleum industry standards for maximum operational safety.

⚙️

Customized Compartments

Available in multiple compartment configurations according to customer requirements.

✔

Quality Tested

Every tanker undergoes Hydro Testing, Leakage Testing and Quality Inspection before dispatch.

Need a Customized Petroleum Tanker?

Contact HH FABTECH today to discuss your capacity, compartment and branding requirements.

Request a Quote
